Description

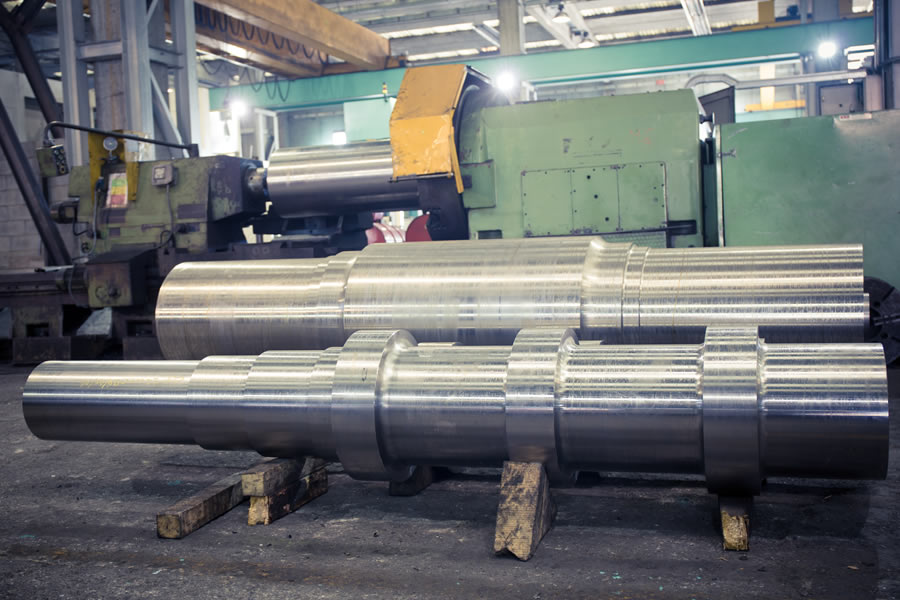

We manufactures shaft Forging in an assortment of geometries and a wide range of materials. Our shaft forging have many industrial applications such as pump shafts, valve stems, cylinder rods, eye bolts, studs, motor shafts and rolls. Shaft forgings are used in any application that endures high stress, impact strength, long fatigue life and high temperatures. Shaft forgings have economical and quality advantages opposed to machining shafts from bar stock. A shaft can be forged to near net shape with varying geometries saving on material cost and machining time. Additionally, a step shaft forged to near net shape will benefit from the forging process and have a grain flow following the forged configuration of the step shaft thereby yielding outstanding grain structure and the best combination of mechanical properties.
The range of materials
Carbon Steel: A105, A350 LF2, A694 F52, F65, F70
Alloy Steel: AISI 4140, AISI 4130, AISI 4340, AISI 8620, 30CrNiMo8
Stainless Steel: A182 F304, F304H, F304L, F316, F316L, F316H, F317, F317L, F347, F347H, F321, F321H,
Duplex Stainless Steel: A182 F51, F53, F55
Chromoly: A182 F1, F5, F5a, F9, F11, F12, F22, F91
Forging Capability
OD: Max 1500 MM
Length: Max 3000 MM
